TL;DR-Sweepy-Icon (1).pngThis page explains how to visualize the relationships between IT assets using diagrams in Lansweeper Sites.


You can better understand your IT environment by visualizing the relations between your various assets.

For more information about Diagrams and its features, see Diagrams.

Remember that Diagrams currently only display IT assets that are synced in your Lansweeper Site (in the cloud). OT assets, software, and users are not yet displayed. You can also create relations from diagrams. To remove relations, go to the asset’s Summary page and edit the relation.

On this page:

Types of relations

Your diagrams can display three types of relationships.

To control which relations are displayed on your diagram, see Personalize diagrams.

Discovered SNMP relations

SNMP relations are discovered automatically based on the network information available in your Inventory. For Discovered SNMP relations to be found, your SNMP credentials must be configured.

To configure SNMP credentials, go to Scanning > Credential Vault > My credentials > Add new credential. Select SNMP from the credential type list and enter the required information.

You may also want to expose network interface uplinks. By default, if Lansweeper discovers more than 4 devices connected to a switch port, the port will be deemed an uplink. An uplink is a port on a router or switch that is designed to connect to another router, switch, or internet access device. For more information, see Manage network interface uplinks.

To learn more about a discovered SNMP relation, select the link to display the relation type, speed, and information port.

By configuring your SNMP credentials correctly, you can improve the discovery and display of these relationships on your diagrams. This limits the number of orphan assets and the number of relations you would have to create manually.

Other discovered relations

Other discovered relations are created by Lansweeper Sites (shown as Asset Relations) based on your scanning settings, mainly from Windows Management Instrumentation (WMI). These relations are stored in your Inventory.

To learn more about this type of discovered relation, select the link to display the relation type, start date, end date, and comments.

Relations created manually

Manual relations are created by users in the Inventory through Asset Relations.

To learn more about a manual relation, select the link to display the relation type, start date, end date, and comments.

How are relations displayed?

The way relations are displayed depends on the type of relation.

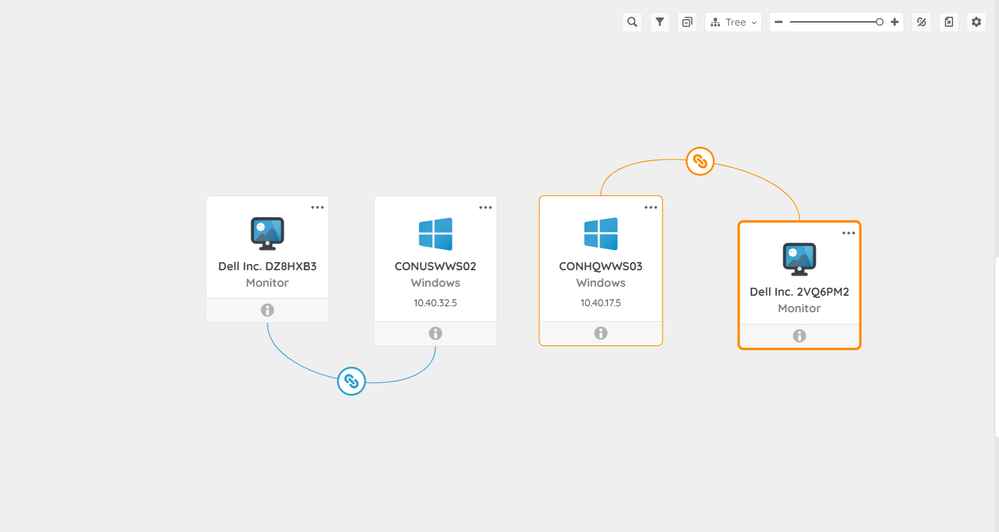

When you select an asset, its relations are highlighted in orange.

Discovered SNMP relations

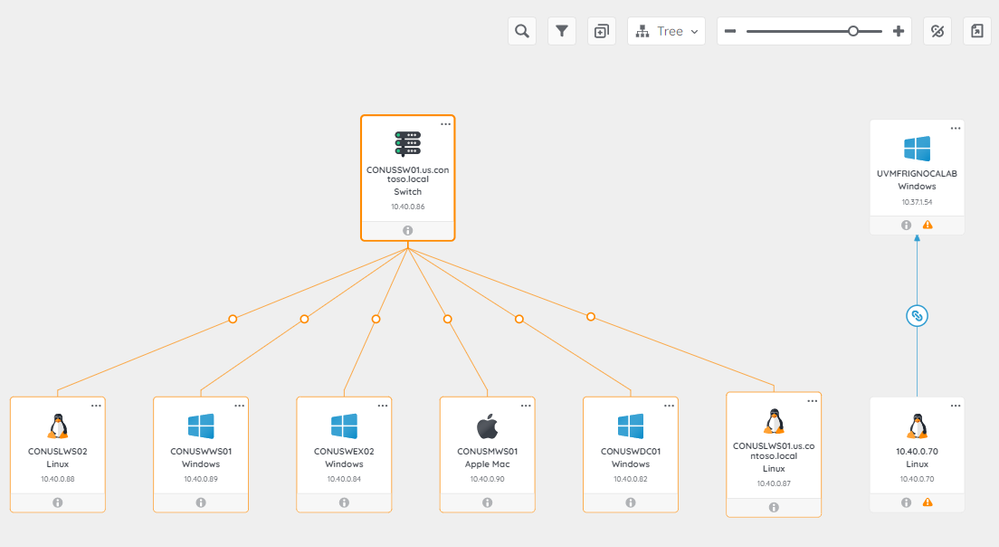

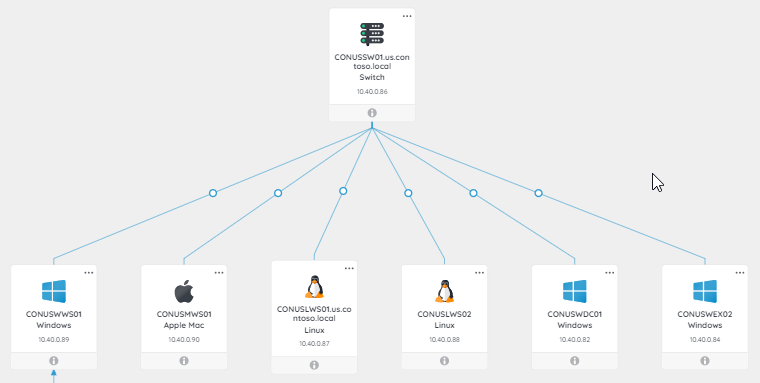

Discovered SNMP relations are represented by a solid blue line with a small dot.

Other discovered relations and manual relations

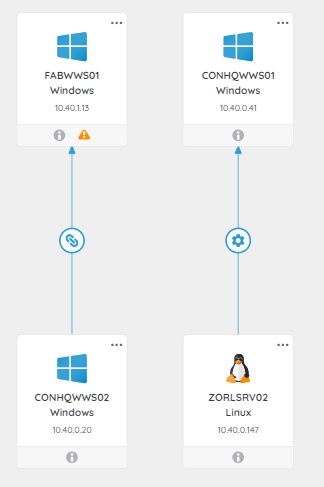

Other discovered relations and relations created manually are represented by a solid blue line with a big dot and icon that relates to the type of relation.

Logical groups

Some relations between assets are displayed as logical groups to simplify how you view your diagrams. Relations are shown as logical groups in the following scenarios:

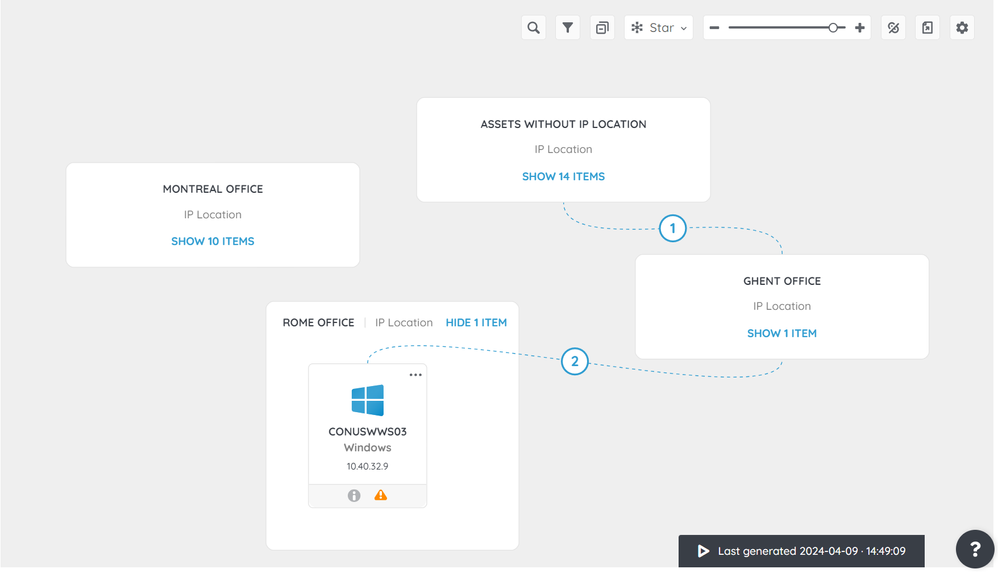

Assets with a shared IP location

If you've configured IP locations in your Inventory, your assets will be grouped by these locations, making it easier to read your IT estate.

You can choose not to display IP Locations on your diagram by going to Settings > Informational and not selecting the IP Location option in the Grouping behavior section.


To update the IP locations, go to Inventory > IP locations > Manage locations. From there, you can edit or add a new IP location.

If your diagram contains a large number of assets and relationships, grouping by IP location will be activated by default to preserve the overall performance of your diagram.

Location asset type

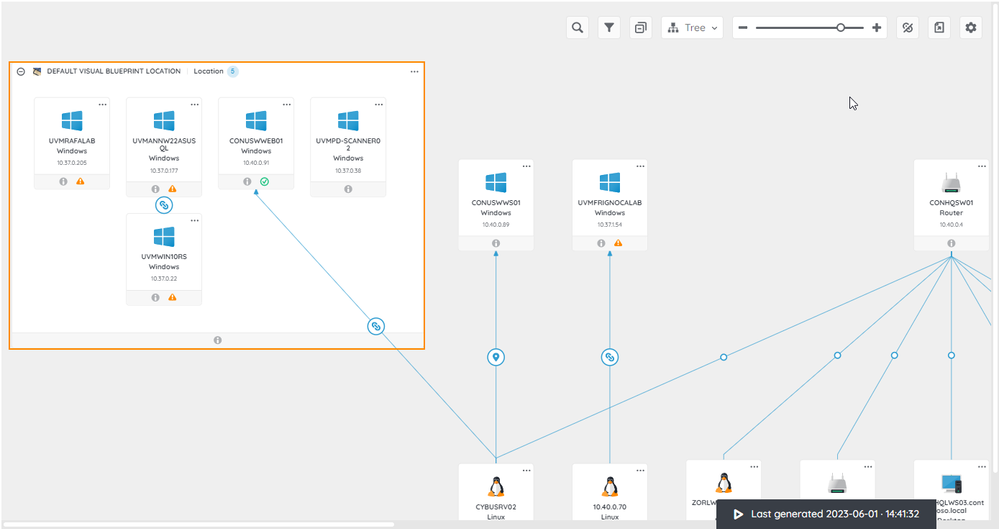

If you have a Location asset type within the scope of your diagram, it will be displayed as a logical group, with the connected assets appearing within the group.

You can choose to not display Location asset types on your diagram by going to Settings > Informational and not selecting the Location (asset) option in the Grouping behavior section.

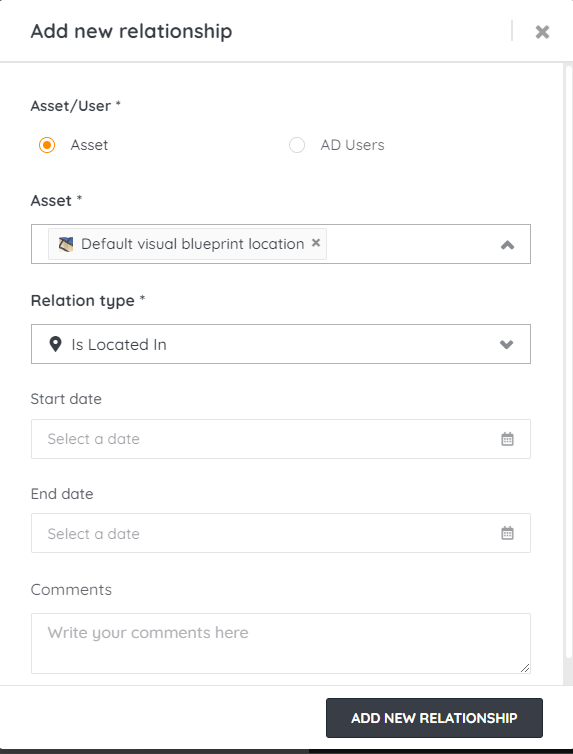

To add an asset to a Location, add a relation to your asset. For Asset, select the asset with a Location asset type, then for Relation type select the Is located in option.

Regenerate your diagram to ensure the asset is displayed within the Location’s logical group.

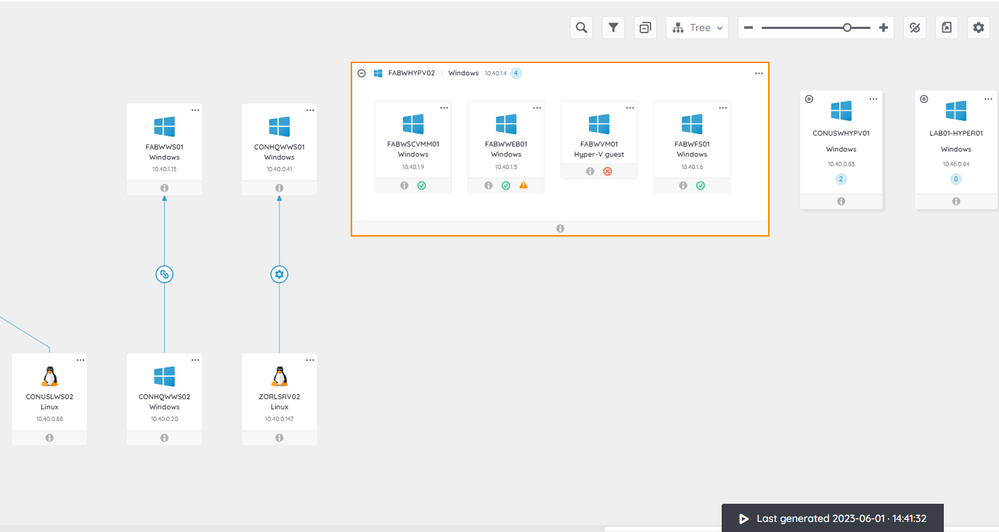

Physical machines hosting virtual machines

Physical assets hosting virtual machines are also displayed as logical groups.

Shared properties on virtual templates

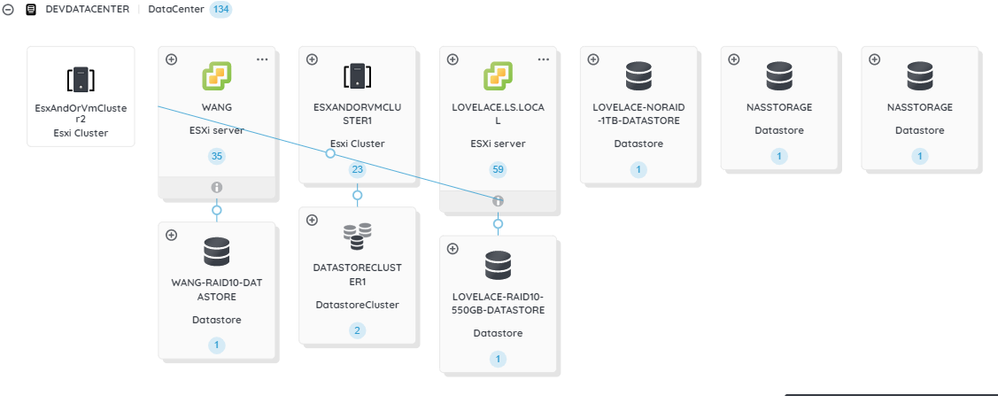

For Virtual Environment templates, some shared properties are displayed as logical groups. These properties are:

  • DataCenters
  • ESXi Clusters
  • DatastoreClusters
  • Datastores
  • Disks


Groups of relations

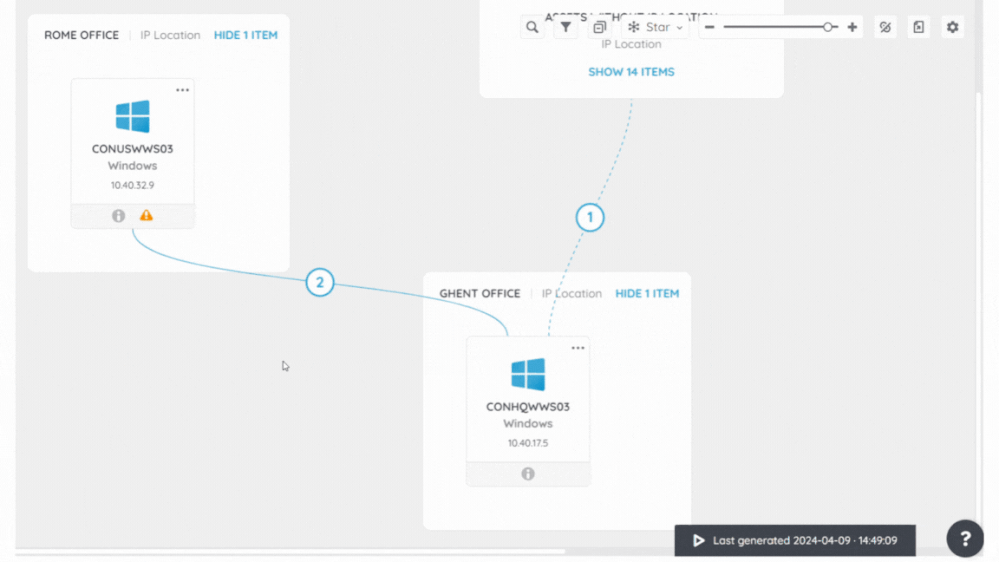

When multiple relations are detected between two assets or groups of assets, these are displayed grouped together, indicating the number of relations detected. To view details of these relations, select the label.

multiple-relations (1).gif

Types of relationship indicators

Your diagrams can display relationships in two distinct ways, enhancing your understanding of how assets are connected within your IT estate.

Solid line relations

Solid line relations represent direct connections between the objects currently visible on your diagram. These connections are essential for understanding your technology assets' immediate network and dependencies.

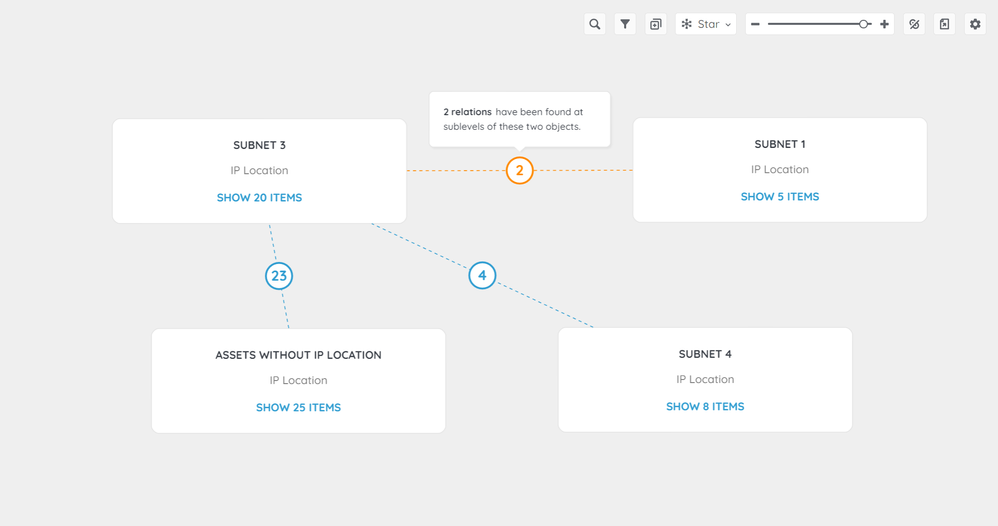

Dotted line relations

Dotted line relations indicate that the connection involves one or more "child" objects of the entities currently displayed, representing underlying or secondary relationships within your IT infrastructure.


To reveal the objects involved in these dotted line relations, select the dotted line. This will automatically expand the diagram to display the child objects and their connections, offering insights into the deeper layers of your diagram.

Handle orphan assets

When an asset has no known relationship with other assets, it is identified as an orphan asset.

To minimize the occurrence of orphan assets, it's crucial to accurately configure your SNMP credentials and properly set up your uplink settings.

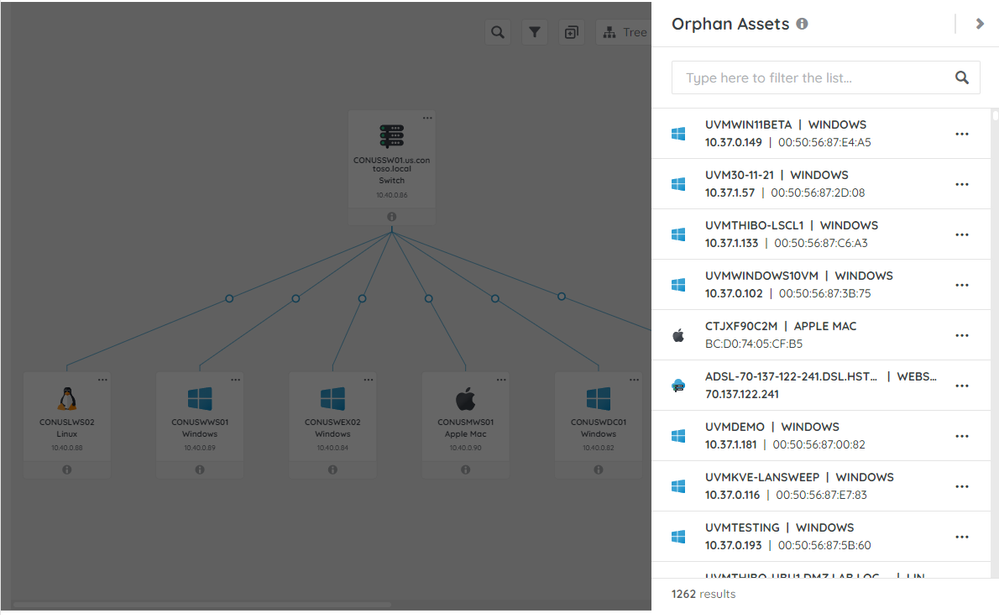

To view your orphan assets within a diagram:

  1. Go to Diagrams and select the diagram of your choice.

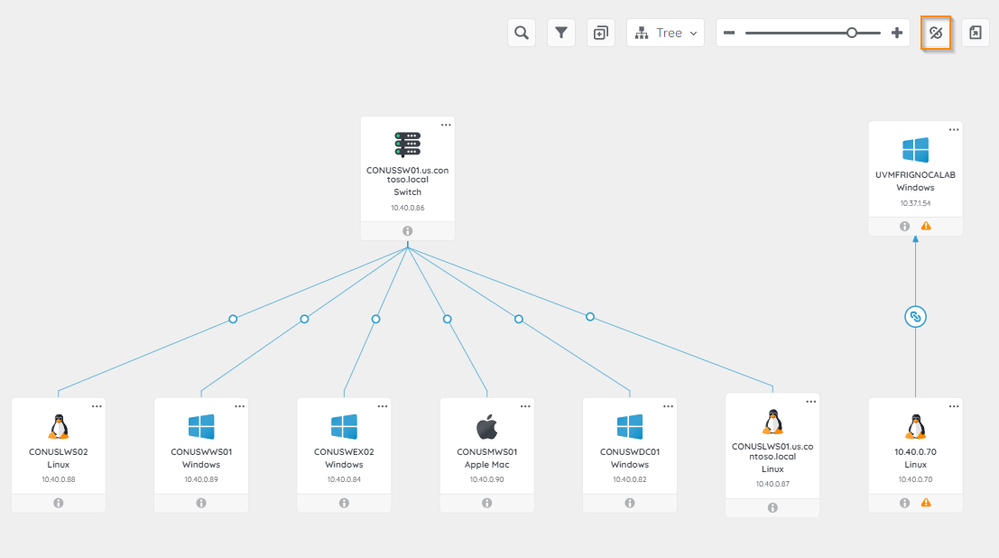

  2. On the diagram, select orphan-assets.png

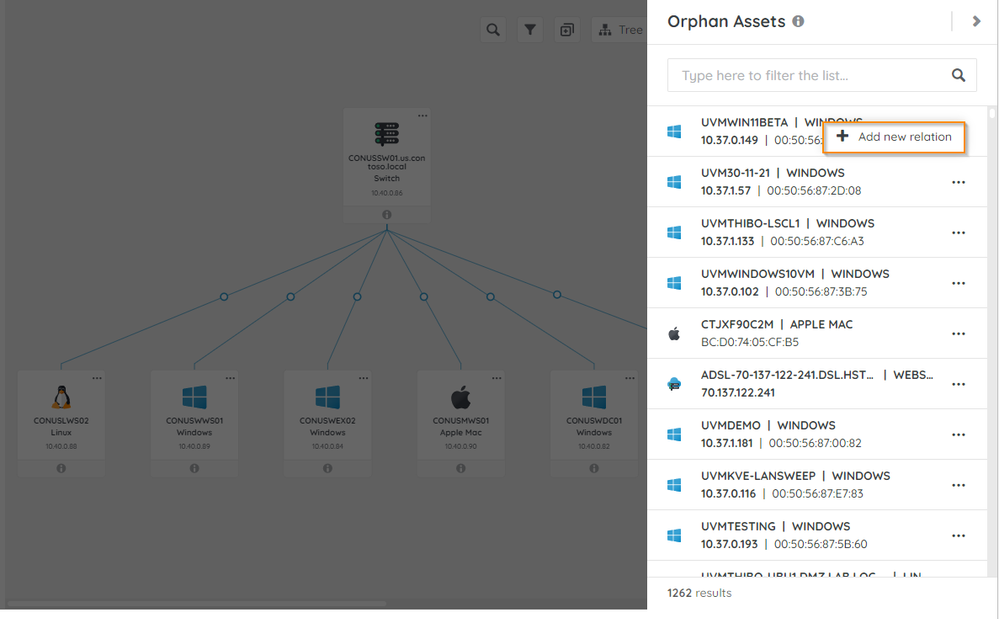

You can search for specific orphan assets by name, IP address, or MAC address from the Orphan Assets list.

You can also add new relations from the Orphan Assets list.

To add a new relation to the asset, select relation.png > Add new relation.

Once a relationship has been manually added to an orphan asset, it will be removed from the list and included in the diagram.

After you add a new relation, regenerate the diagram to ensure it is displayed correctly.

Add relations

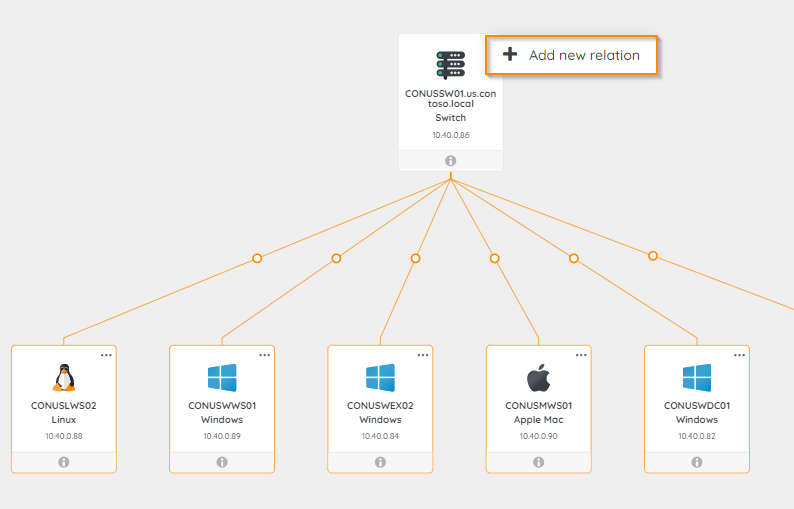

You can add relations to your assets right from your diagram. To add a relation:

  1. Go to Diagrams and select the diagram of your choice.
  2. Find the asset you want to edit. If you can’t easily see the asset, try searching or filtering for it.
  3. Select relation.png in the top right corner of your asset, then select Add new relation.
  4. In the pop-up window, enter the information required.
  5. Select Add new relationship.

Your new manual relation is displayed. Select the link to see the manual relation details.

Even if your relation is already created in your Inventory, after you add a new relation regenerate the diagram to ensure it is displayed correctly.

Next steps

Once you’ve discovered asset relations, find and filter assets on your diagram.
