This page explains how to use filters to display only certain objects on your diagram based on categories such as asset type, IP address, and state.
Filters allow you to choose which objects are displayed on your diagram based on categories such as asset type, IP address, and state.
For more information about Diagrams and its features, see
Diagrams.
Filters are kept in memory for the user handling them so they are still active when the diagram is consulted later.
To filter your assets:
- In your Lansweeper Site, go to Diagrams and select the diagram you want to filter.
- Select Filters
.
- Select the filter category you desire, including if the filtered items should be reduced or hidden.
Your diagram is automatically updated.
You can also select Reset filters to default values to apply the default values suggested by the diagram type.

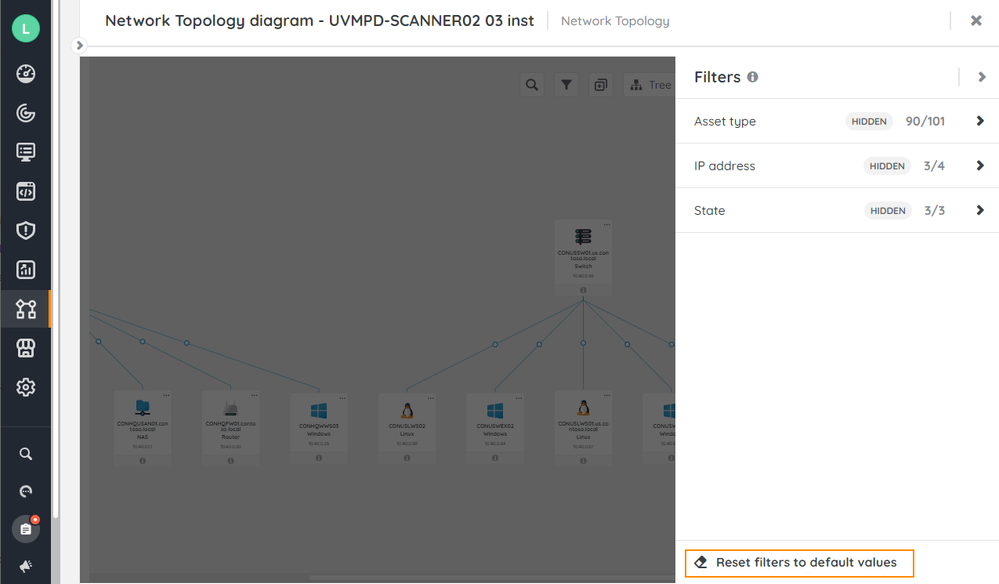

![reset-filters.png reset-filters.png](/t5/image/serverpage/image-id/3123i5ADE5694119086DA/image-size/large?v=v2&px=999)
Filter categories
Asset type
Filter by the types of assets available on your diagram
Quickly select or unselect all your asset types with Select all or Unselect all.
To find specific asset types:
- Scroll through the list of asset types or use the search bar to locate a specific type.
- Toggle the type On or Off.
- Decide to hide or reduce filtered items.
![asset-types.gif asset-types.gif](/t5/image/serverpage/image-id/3124iB0A8AF5962739AB4/image-size/large?v=v2&px=999)
IP address
Filter your assets based on their IP address.
Objects without an IP address that have a known relationship with an asset are considered to belong to the IP location of the related asset. They are displayed on the diagram if the filter allows displaying the related asset.
It is not possible to filter by IP address on diagrams where the scope is set to
IP location.
You can filter your assets by IP location or by IP range.
To filter by IP location:
- Select By IP Location.
- Either:
- Quickly select or unselect all your IP locations with Select all or Unselect all.
- Scroll through the list of IP locations or use the search bar to locate a specific location, then toggle the location On or Off.
- Decide to hide or reduce filtered items by selecting Reduced or Hidden.
![ip-range.gif ip-range.gif](/t5/image/serverpage/image-id/3125iAB1E8720D0C72DB0/image-size/large?v=v2&px=999)
To filter by IP Range:
- Select By IP Range.
- Select either:
- Enter Start IP Address and End IP Address: Enter the start and end IP addresses.
- Ender a range of IP Addresses: Enter the IP range or a CIDR block by using - or / to define the location.
- Decide to hide or reduce filtered items by selecting Reduced or Hidden.
State
Filter your assets depending on their state, such as active or broken. You can update your states in the Inventory.
If you want to filter all assets based on their state, select Select all or Unselect all.

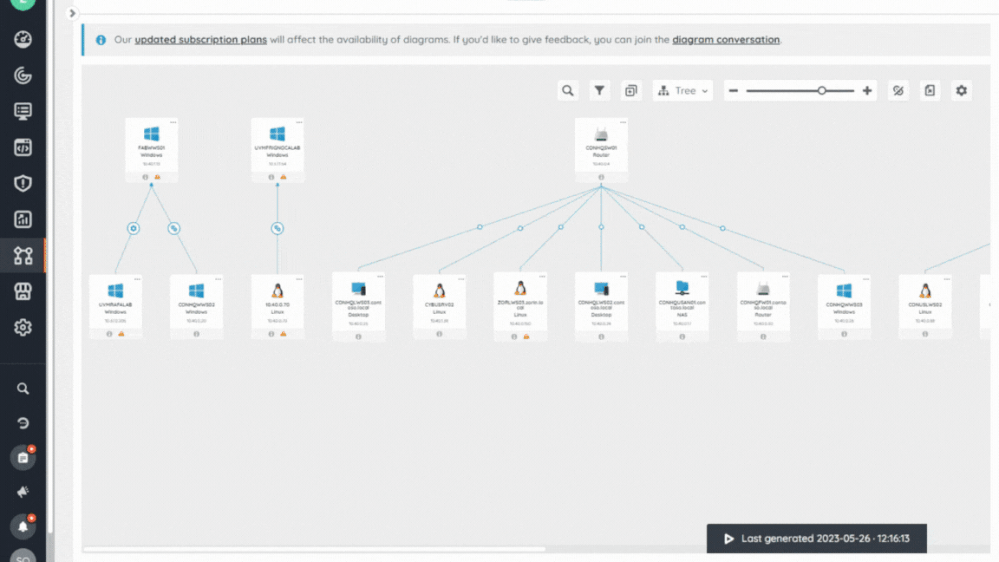

![asset-state.gif asset-state.gif](/t5/image/serverpage/image-id/3126i9F6026D650D8D34C/image-size/large?v=v2&px=999)
To find specific asset states:
- Scroll through the list of states or use the search bar to locate a specific state.
- Toggle the state On or Off.
- Decide to hide or reduce filtered items by selecting Reduced or Hidden.
Filtered items
Decide how you want to display your filtered objects. This setting can be individually configured for each filter category. You can filter your items based on the following settings:
- Hidden: If you select the hidden option, the assets are removed from your diagram. This does not remove them from the scope of your diagram; filtered assets are just not displayed. If you hide your filtered assets, their relations to other assets are also not shown.
- Reduced: If you select the reduced option, your assets are still displayed on the diagram but in a miniature form without any of their information displayed. This option allows you to continue to view the relations between your filtered and unfiltered assets, which helps to better understand your network without overwhelming your diagram with too much information.

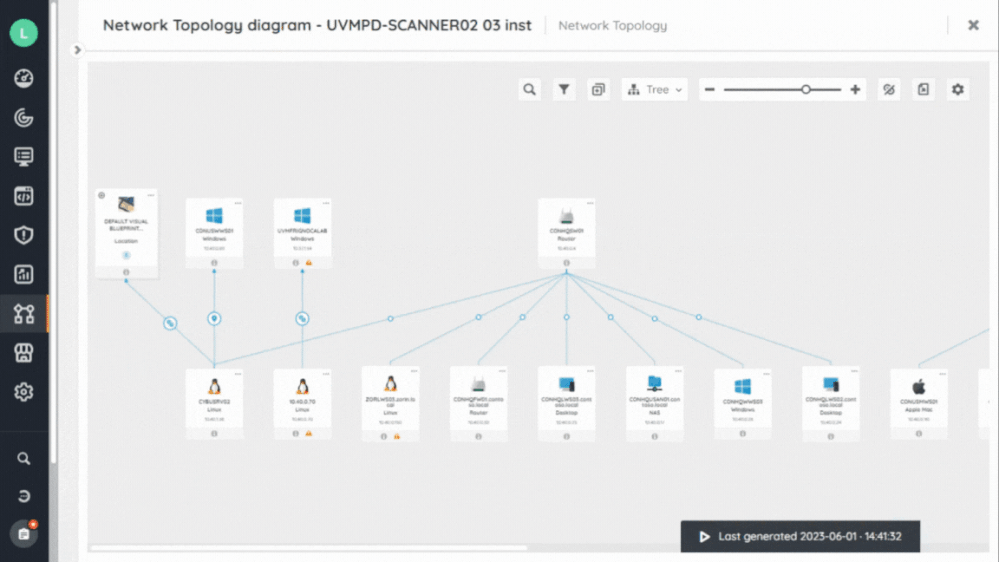

![filtered-items (2).gif filtered-items (2).gif](/t5/image/serverpage/image-id/3127i4F4D56A6F4D8AB8C/image-size/large?v=v2&px=999)
Next steps
Once you’ve found and filtered your assets, you can personalize your diagrams.
