Still hot issue - Securing access to web console

[TelhioCU]

I have received a solution that did not work to correct my issues with securing access to the web console.

The documentation states to add the approved group name/s to the web.config file. I have done so without success. Additionally, I have attempted to use "allowed" users and had no success.

Changing the permissions in IIS/NTFS works to prevent users from getting to the site without authentication, however it also prevents proper use of the web console by causing web application errors.

I really need to get a solution for this problem.

Thanks,

TCU

Attached is the web.config that is in place now, as well as one I have edited to deploy the group restriction without success.



This one is operational without any security settings:

<configuration>
<appSettings>
<add key="MM_CONNECTION_HANDLER_Lansweeper" value="sqlserver.htm"/>
<add key="MM_CONNECTION_STRING_Lansweeper" value="Persist Security Info=False;Data Source=BR01SQL03;Initial Catalog=Lansweeper32;User ID=xxxxxxxxx;Password=xxxxxxxxxx"/>
<add key="MM_CONNECTION_DATABASETYPE_Lansweeper" value="SQLServer"/>
<add key="MM_CONNECTION_SCHEMA_Lansweeper" value=""/>
<add key="MM_CONNECTION_CATALOG_Lansweeper" value=""/>
<add key="dateformat" value="dd/MM/yyyy"/>
</appSettings>
<system.web>

<compilation debug="true" strict="false" explicit="true">
<assemblies>
<add assembly="System.Web.Extensions, Version=1.0.61025.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35"/>
<add assembly="System.Design, Version=2.0.0.0, Culture=neutral, PublicKeyToken=B03F5F7F11D50A3A"/>
<add assembly="System.Web.Extensions.Design, Version=1.0.61025.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35"/>
<add assembly="System.Windows.Forms, Version=2.0.0.0, Culture=neutral, PublicKeyToken=B77A5C561934E089"/>
</assemblies>
</compilation>
<httpHandlers><remove verb="*" path="*.asmx"/>
<add verb="*" path="*.asmx" type="System.Web.Script.Services.ScriptHandlerFactory" validate="false"/>
<add verb="*" path="*_AppService.axd" type="System.Web.Script.Services.ScriptHandlerFactory, System.Web.Extensions, Version=1.0.61025.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" validate="false"/>
<add verb="GET,HEAD" path="ScriptResource.axd" type="System.Web.Handlers.ScriptResourceHandler, System.Web.Extensions, Version=1.0.61025.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" validate="false"/>
</httpHandlers>
<httpModules>
<add name="ScriptModule" type="System.Web.Handlers.ScriptModule, System.Web.Extensions, Version=1.0.61025.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35"/>
</httpModules></system.web>
</configuration>

---------

This one has the recommended security settings and does not work:

<configuration>
<appSettings>
<add key="MM_CONNECTION_HANDLER_Lansweeper" value="sqlserver.htm"/>
<add key="MM_CONNECTION_STRING_Lansweeper" value="Persist Security Info=False;Data Source=BR01SQL03;Initial Catalog=Lansweeper32;User ID=lssqluser32;Password=mysecretpassword0*"/>
<add key="MM_CONNECTION_DATABASETYPE_Lansweeper" value="SQLServer"/>
<add key="MM_CONNECTION_SCHEMA_Lansweeper" value=""/>
<add key="MM_CONNECTION_CATALOG_Lansweeper" value=""/>
<add key="dateformat" value="dd/MM/yyyy"/>
</appSettings>
<system.web>
<authentication mode="Windows"/>
<authorization>
<allow roles="domain\my dept" />
<deny users="*" />
</authorization>
<compilation debug="true" strict="false" explicit="true">
<assemblies>
<add assembly="System.Web.Extensions, Version=1.0.61025.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35"/>
<add assembly="System.Design, Version=2.0.0.0, Culture=neutral, PublicKeyToken=B03F5F7F11D50A3A"/>
<add assembly="System.Web.Extensions.Design, Version=1.0.61025.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35"/>
<add assembly="System.Windows.Forms, Version=2.0.0.0, Culture=neutral, PublicKeyToken=B77A5C561934E089"/>
</assemblies>
</compilation>
<httpHandlers><remove verb="*" path="*.asmx"/>
<add verb="*" path="*.asmx" type="System.Web.Script.Services.ScriptHandlerFactory" validate="false"/>
<add verb="*" path="*_AppService.axd" type="System.Web.Script.Services.ScriptHandlerFactory, System.Web.Extensions, Version=1.0.61025.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" validate="false"/>
<add verb="GET,HEAD" path="ScriptResource.axd" type="System.Web.Handlers.ScriptResourceHandler, System.Web.Extensions, Version=1.0.61025.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" validate="false"/>
</httpHandlers>
<httpModules>
<add name="ScriptModule" type="System.Web.Handlers.ScriptModule, System.Web.Extensions, Version=1.0.61025.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35"/>
</httpModules></system.web>
</configuration>

Once put the security in place, from a remote PC when I try to open the website I get the following error:

Server Error in '/lansweeper32' Application.
--------------------------------------------------------------------------------

Access is denied.
Description: An error occurred while accessing the resources required to serve this request. The server may not be configured for access to the requested URL.

Error message 401.2.: Unauthorized: Logon failed due to server configuration. Verify that you have permission to view this directory or page based on the credentials you supplied and the authentication methods enabled on the Web server. Contact the Web server's administrator for additional assistance.

However, if I login on the local LanSweeper32 machine (as the same account I am attempting to use from the remote location) everything works fine!
The IIS Settings have anonymous enabled, along with integrated windows security. That is all.

[mz3prs]

That worked thanks.

[Hemoco]

the error that you get is coming from unknown characters (probably linebreaks) between "initial" and "catalog"

[mz3prs]

Same result

[Hemoco]

Make sure that there are no line breaks in your config file (turn wordwrap off in notepad)

[mz3prs]

OK the good news is that we did not get an error with the web.config file, but we got this error when went to the website...

[Hemoco]

My mistake

I've attached a file which should work for you
I also changed "domain admin" to "domain admins"

[mz3prs]

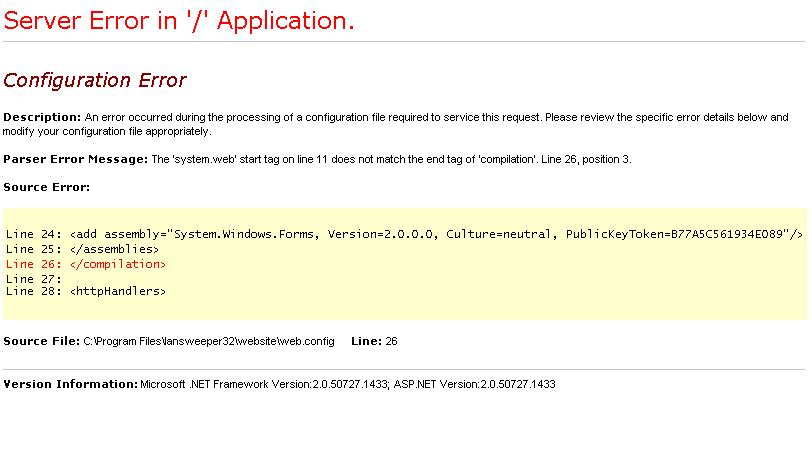

Now I am getting an error with assemblies line...I will going to upload a screenshot.

[Hemoco]

remove the "</compilation>" line

[mz3prs]

OK that error cleared, but now we got this one....
