Chart: Events last 14 days

[Mister_Nobody]

LS has one powerful chart. It is line-diagram. It can show more than 2 column data.

I have developed SQL-query to track most generated events.

Firstly, I have selected sourcenames of events. Then create report.

You should use report's name with prefix "Chart:".

Chart: Events last 14 days

Query:

Select Top 1000000 Convert(nVARCHAR(10),tblNtlog.TimeGenerated,102) thedate,
  Sum(Case
    When tblNtlogSource.Sourcename = 'microsoft-windows-distributedcom' Then 1
    Else 0
  End) [microsoft-windows-distributedcom],
  Sum(Case
    When tblNtlogSource.Sourcename = 'application error' Then 1
    Else 0
  End) [application error],
  Sum(Case
    When tblNtlogSource.Sourcename = 'Microsoft-Windows-Security-Kerberos' Then
      1
    Else 0
  End) [Microsoft-Windows-Security-Kerberos],
  Sum(Case
    When tblNtlogSource.Sourcename = 'service control manager' Then 1
    Else 0
  End) [service control manager],
  Sum(Case
    When tblNtlogSource.Sourcename = 'microsoft-windows-wmi' Then 1
    Else 0
  End) [microsoft-windows-wmi],
  Sum(Case
    When tblNtlogSource.Sourcename = 'Real-time file protection' Then 1
    Else 0
  End) [Real-time file protection]
From tblNtlog
  Inner Join tblNtlogSource On tblNtlogSource.SourcenameID =
      tblNtlog.SourcenameID
Where tblNtlog.TimeGenerated > GetDate() - 14 And tblNtlog.TimeGenerated <
  GetDate() + 1 And tblNtlog.Eventtype = 1
Group By Convert(nVARCHAR(10),tblNtlog.TimeGenerated,102)
Order By thedate

After create report you can add Chart Report on Tab via drag&drop it

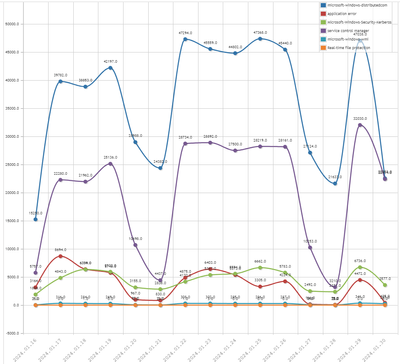

Choose line-type and show label. My result (six lines on same chart):

[Obi_1_Cinobi]

Hello there!

Another nice one! 😎
